We are authorised Channel Partner of Compressor Controls Corporation (CCC) in India. We offer parts supply and services for CCC Control systems. CCC is a leading company for Turbomachinery Optimization. CCC has specialized in Turbomachinery controls for over 50 years with more than 10,000 turbomachinery installations. CCC serve customers in a broad range of industries including oil, gas, chemical, petrochemical, refineries, LNG, pipelines, steel mills, pharmaceutical, machine-building, and power generation facilities.

Few of CCC control systems are highlighted here.

For more details on CCC product and service, click on the link provided below

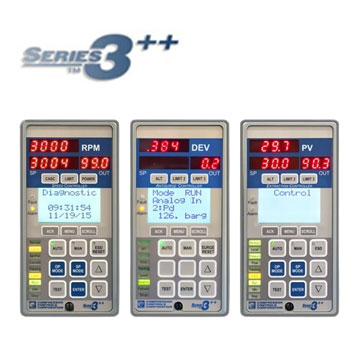

Series3++ Controller

The new Series 3++ Controller family builds on the phenomenally successful and reliable product line of Series 3 Plus single-application controllers.

Each Series 3++ control system can run one of the following control applications.

  • Antisurge Controller
  • Performance Controller
  • Dual-Loop Controller (Antisurge and Performance)
  • Speed Controller
  • Extraction Controller

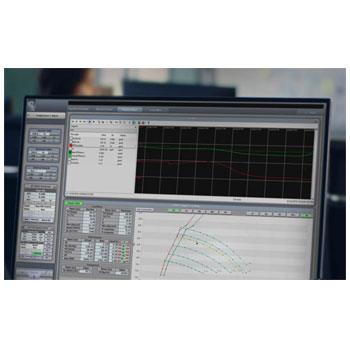

Train View II®

Events like compressor surge happens in a very short time window, and being able to see and record the exact sequence of such events in high resolution is a must in getting to the root cause. TrainView software seamlessly organizes all of the critical turbomachinery operation data into a tab based navigation bars and split-screen buttons.

  • Dynamic process system overview screen with I/O’s and Real-time compressor / turbine operating maps
  • Scrollable list of current alarms and historical events
  • Trend graphs for plotting real-time or replaying recorded process data
  • Fully-featured controller faceplates for changing set points and mode of operation

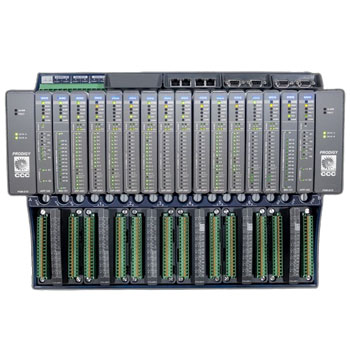

Prodigy

Prodigy® is a Single platform for all your turbomachinery control needs.

Prodigy is a highly scalable hardware platform that can be deployed as a simplex small I/O system for controlling auxiliary machines to a duplex large I/O system for controlling a gas turbine driven compressor

Vanguard S5P

Vanguard S5P offers a plug-in migration solution to extend lifecycle of existing S5 Vanguard control system, which were designed for support of 576 I/O points

Series 5 Vanguard® is a modular, open-architecture turbomachinery control system for advanced process control. Advanced control applications are implemented, including anti-surge controls and load-sharing, gas and steam turbines, extraction, etc.

Guardian ODS System

The Guardian® Overspeed Detection System (ODS) offers certified overspeed protection for your rotating equipment plus integration with industry leading CCC control systems.

  • Three (3) independent, hot-swappable, speed monitoring modules with 2-out-of-3 voting
  • 12 millisecond response time for 0.5 to 80,000 rpm
  • API-670 and API-612 compliant
  • IEC 61508 SIL-3 (Safety Integrated Level 3) certified

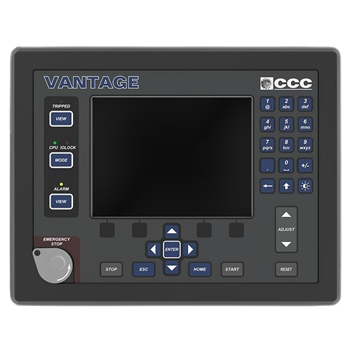

Vantage.GDX

Advanced Steam Turbine Control

Vantage, a purpose-built system designed to handle wide array of turbine controls, which includes:

  • Speed
  • Load
  • Extraction header pressure
  • Inlet header pressure
  • Exhaust header pressure
  • Tie-line power
